Topology: Open Coil

An open coil is used when the electrical connections leave the simulation domain. This occurs, for example, when symmetry is applied or when solid coils have connectors that extend outside the modeled region.

In this topology, two ports must be defined:

  • Entry port
  • Exit port

For a positive current specification, the current flows from the entry port to the exit port.

Note that

  • Entry and Exit ports must be part of the coil volume
  • Degenerate ports (zero area or disconnected faces) are invalid.
  • A positive current flows from Entry → Exit.
  • The resulting magnetic field orientation follows the right-hand rule with respect to the current direction.

Examples

A solid coil, named Coil with connectors extending to the outer simulation domain. The entry port named Coil::InputPort is marked in blue and the exit port named Coil::ExitPort in red.

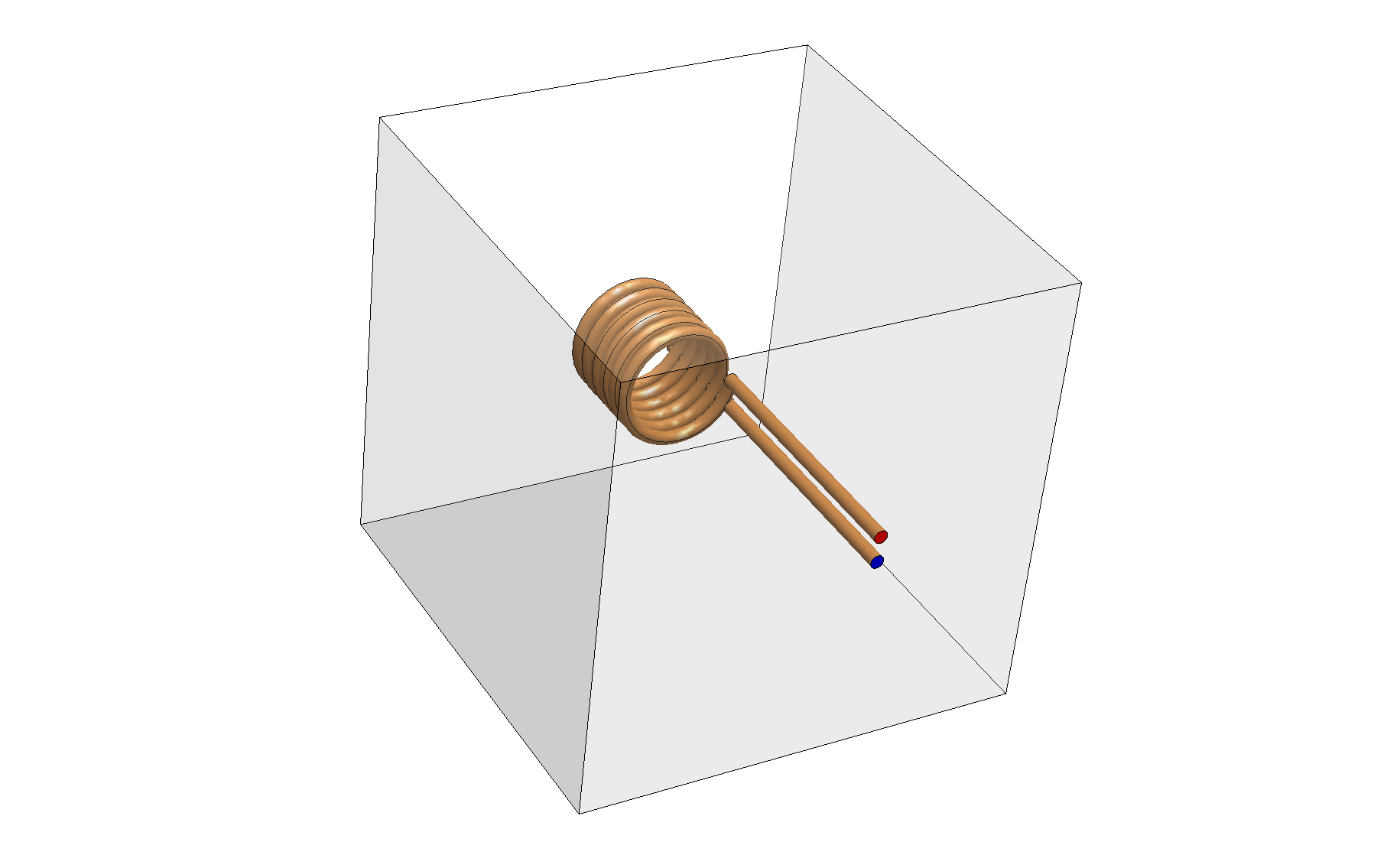

Open coil with entry and exit ports
Figure 1: Solid coil with conductors extending outside the simulation domain. Blue face: entry port. Red face: exit port.


An open coil topology can then be defined as:

coil_topology = CoilTopologyOpen(
    "Coil::InputPort" @ Bnd,
    "Coil::OutputPort" @ Bnd,
)
