Tangential Magnetic Flux Condition¶

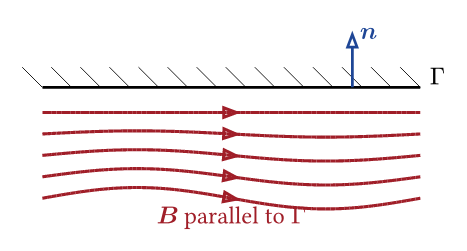

The tangential magnetic flux condition is a boundary condition which enforces the magnetic flux density \(\mathbf{B}\) to be tangential to the boundary by imposing
\[
\mathbf{n} \cdot \mathbf{B} = 0 \quad \text{on} \quad \Gamma.
\]
This condition is usually required for boundaries where current enters or leaves
the domain.
Specifically, when an Excitation Coil is defined as an open coil, the ports
must have a tangential magnetic flux boundary condition assigned.
