Tangential Magnetic Field Condition¶

The tangential magnetic field condition is a boundary condition that imposes a prescribed complex tangential magnetic field on $\Gamma$:

\[ \left. \tilde{\mathbf{H}} \times \mathbf{n} \right|_{\Gamma} = \tilde{\mathbf{H}}_\text{ext}. \]

By Ampère's law this is equivalent to prescribing a surface current density $\tilde{\mathbf{K}}_s = \mathbf{n} \times \tilde{\mathbf{H}}$ on the boundary. Because the field is complex-valued, the real and imaginary parts are supplied separately.

Prescribed tangential magnetic field on the boundary

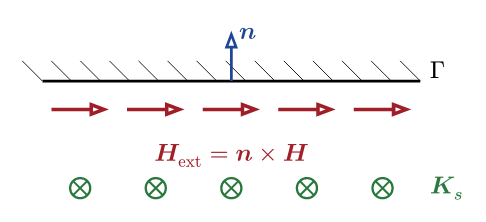

Figure 1: A prescribed tangential field $\tilde{\mathbf{H}}_\text{ext}$ along the boundary $\Gamma$, equivalent to an imposed surface current density $\tilde{\mathbf{K}}_s = \mathbf{n} \times \tilde{\mathbf{H}}$ (shown flowing into the page).

Applicability¶

Applicable on boundary surfaces. It imposes the prescribed tangential field through a weak-form (Neumann-type) surface term — equivalent to a surface current — and does not constrain the potential directly. Because the field is complex-valued, its real and imaginary parts are supplied as separate vector coefficients.

When to use this¶

Uniform external excitation. Apply a known background field on the outer boundary of an air box — the standard setup for many benchmark studies (e.g. Compumag TEAM 7).
Source replacement. Replace a distant excitation coil or solenoid by its known surface-field contribution, avoiding the need to mesh it.
Driven phase shift. Excite two faces with a $90°$ phase difference (one real-valued, one imaginary-valued) to drive a rotating field — useful for rotating-field calibration and motor end-region studies.

Usage¶

A real-only excitation (phase reference at $0$):

from mufem.electromagnetics.timeharmonicmagnetic import (
    TangentialMagneticFieldBoundaryCondition,
)

tangential_field_bc = TangentialMagneticFieldBoundaryCondition(
    name="ExternalField",
    marker="Air::Boundary" @ Bnd,
    tangential_magnetic_field_real=(2.16e5, 0.0, 0.0),
    tangential_magnetic_field_imag=(0.0, 0.0, 0.0),
)

time_harmonic_magnetic_model.add_condition(tangential_field_bc)

Two boundaries with a $90°$ phase shift, driving a rotating field:

field_amplitude = 7.96e5

left_bc = TangentialMagneticFieldBoundaryCondition(
    name="ExternalField-Real",
    marker="Left" @ Bnd,
    tangential_magnetic_field_real=(field_amplitude, 0.0, 0.0),
    tangential_magnetic_field_imag=(0.0, 0.0, 0.0),
)

right_bc = TangentialMagneticFieldBoundaryCondition(
    name="ExternalField-Imag",
    marker="Right" @ Bnd,
    tangential_magnetic_field_real=(0.0, 0.0, 0.0),
    tangential_magnetic_field_imag=(0.0, 0.0, field_amplitude),
)

time_harmonic_magnetic_model.add_conditions([left_bc, right_bc])

Both arguments accept any vector coefficient (constant tuple, expression, etc.), so spatially varying excitations are supported.
